Step 3 & 4
Attaching Loading Ramp to Carrier
Viewing instructions for Sport

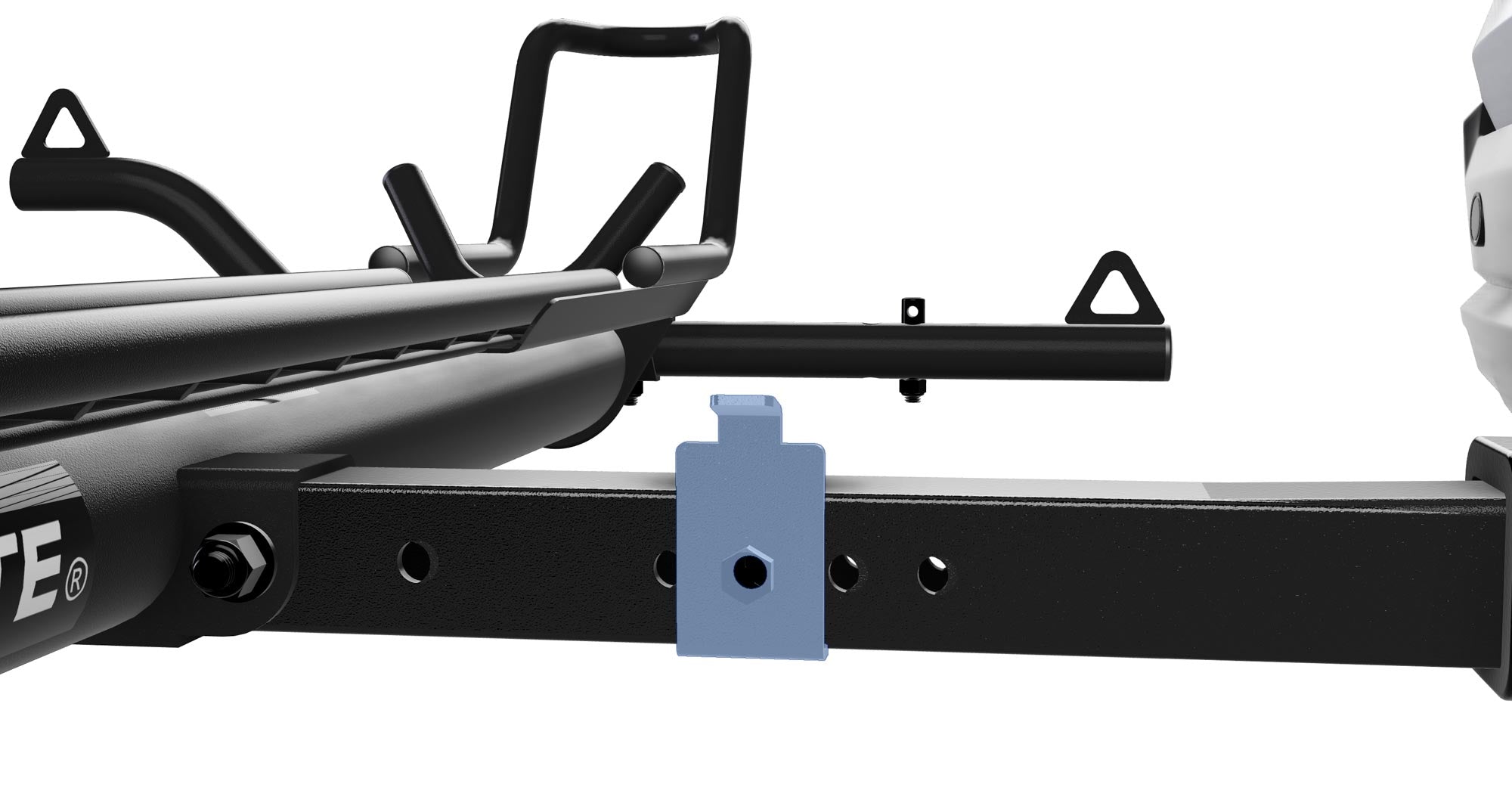

(A.) Align Ramp Keeper Tab on Receiver Tube
Ensure the angled flap of the tab is pointing opposite the wheel stop (as shown above) and in line with the linchpin receiver post on the front tie-down arm.

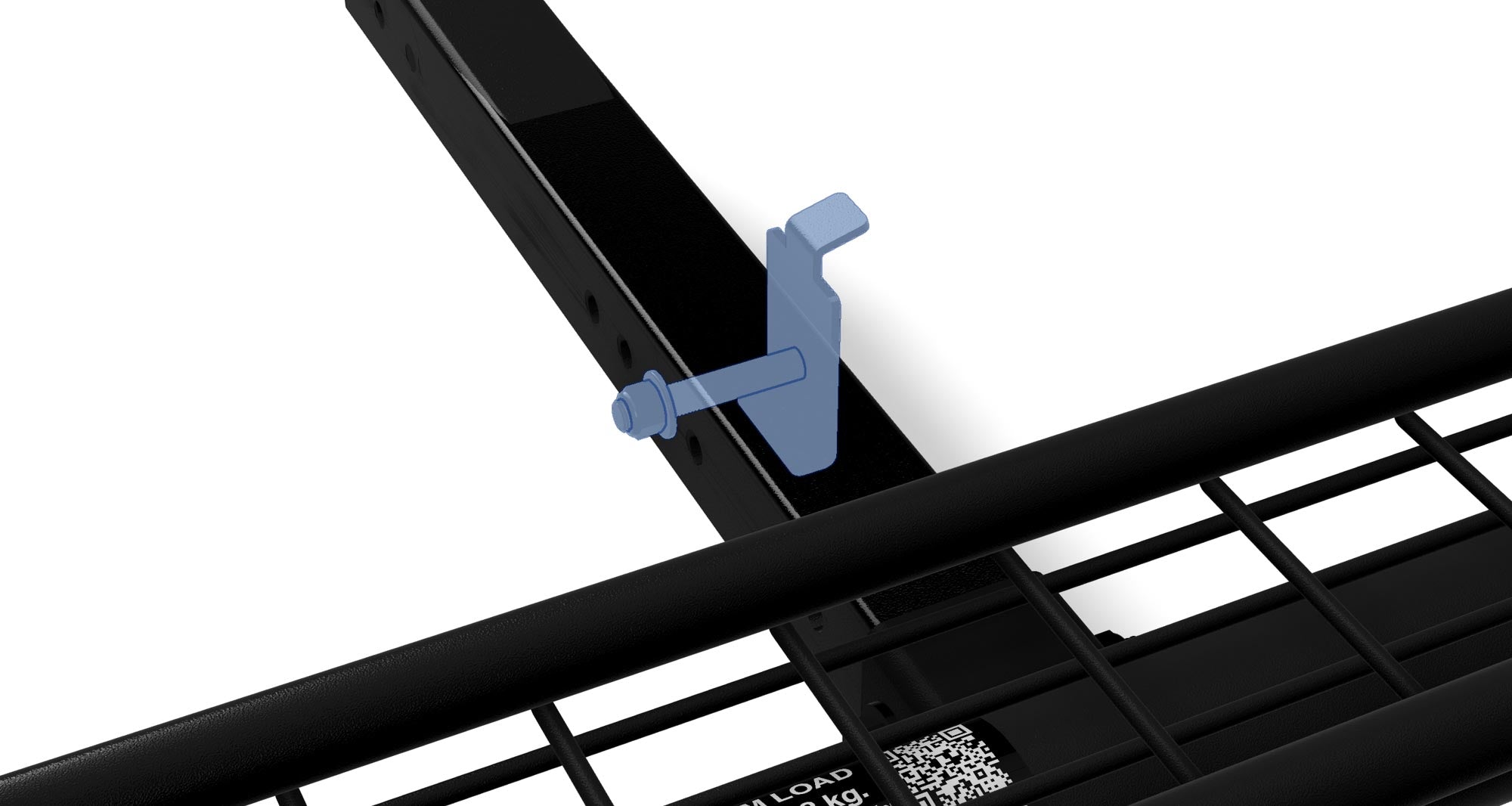

(B.) Mount the Ramp Keeper Tab
Secure the keeper tab in position with a bolt, washer, and nut. Tighten in place.

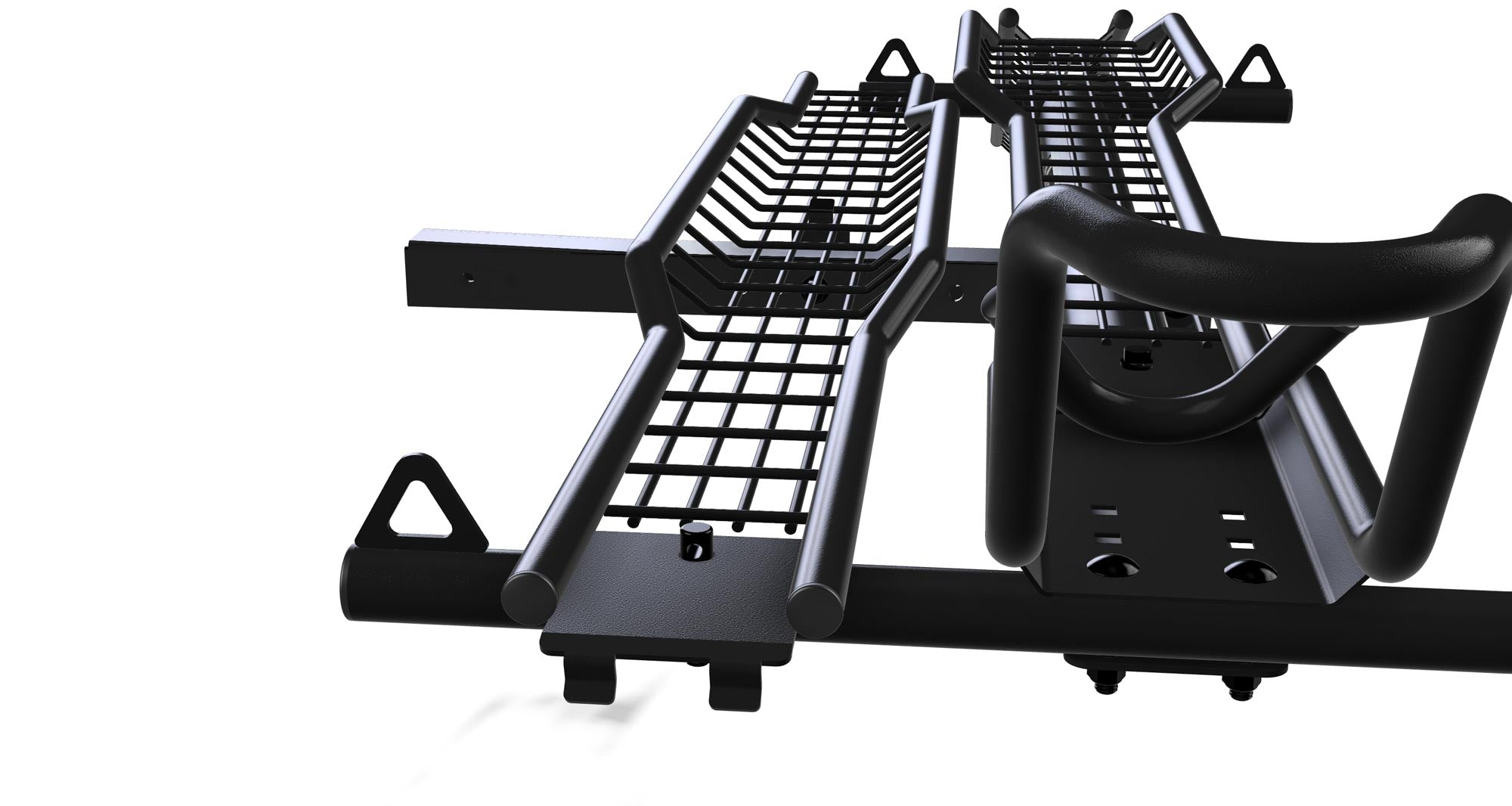

(C.) Stow Ramp & Align with Linchpin Receiver Post
Place the ramp across the receiver tube and onto the tie down arm, aligning the hole on the ramp with the receiver post on the tie-down arm.

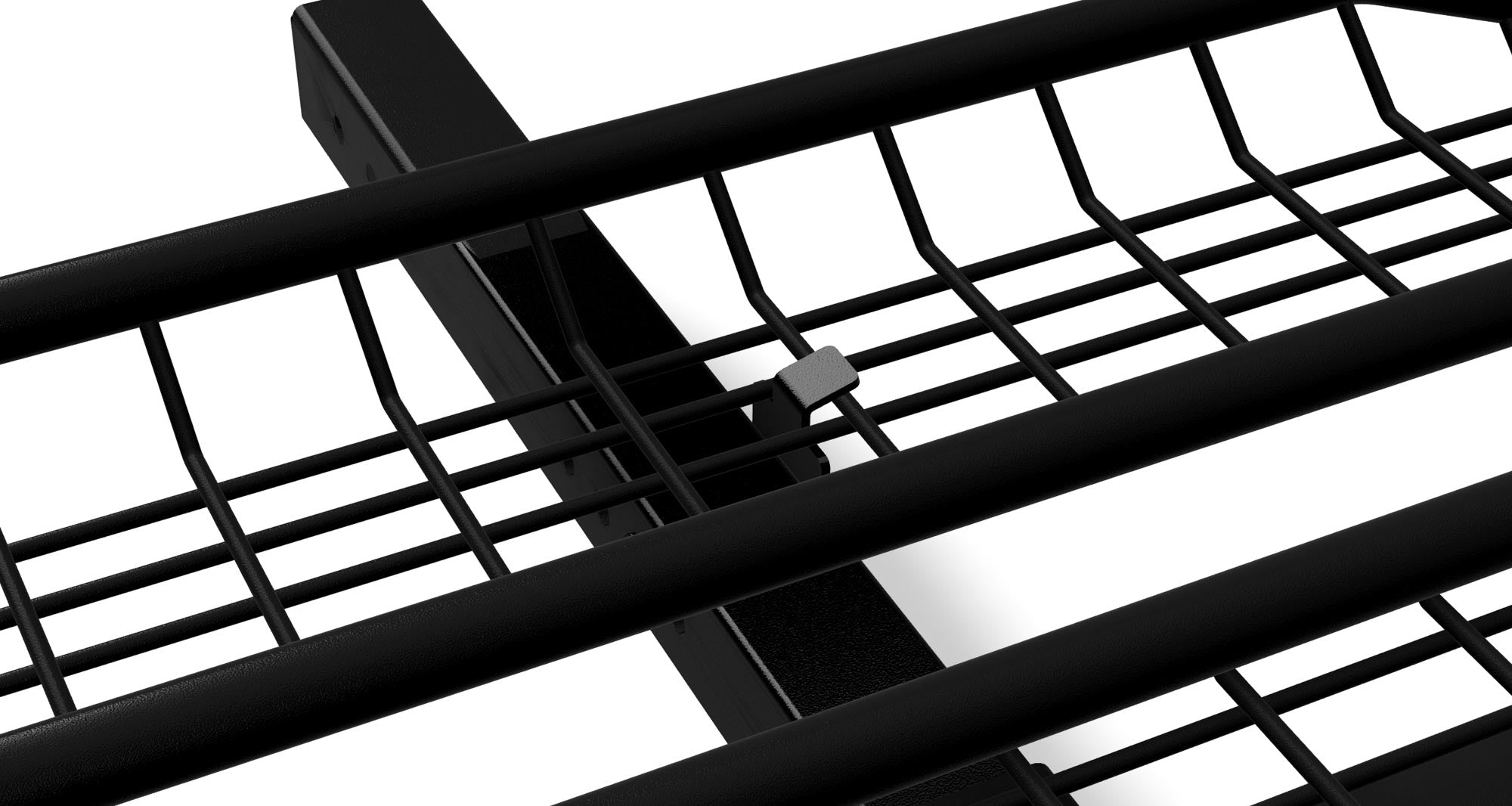

(D.) Ensure Loading Ramp is Under Ramp Tab
If needed, reposition the ramp to ensure that the ramp’s wire structure is positioned under the ramp tab on the receiver tube. This ensures the ramp will not move while hauling.

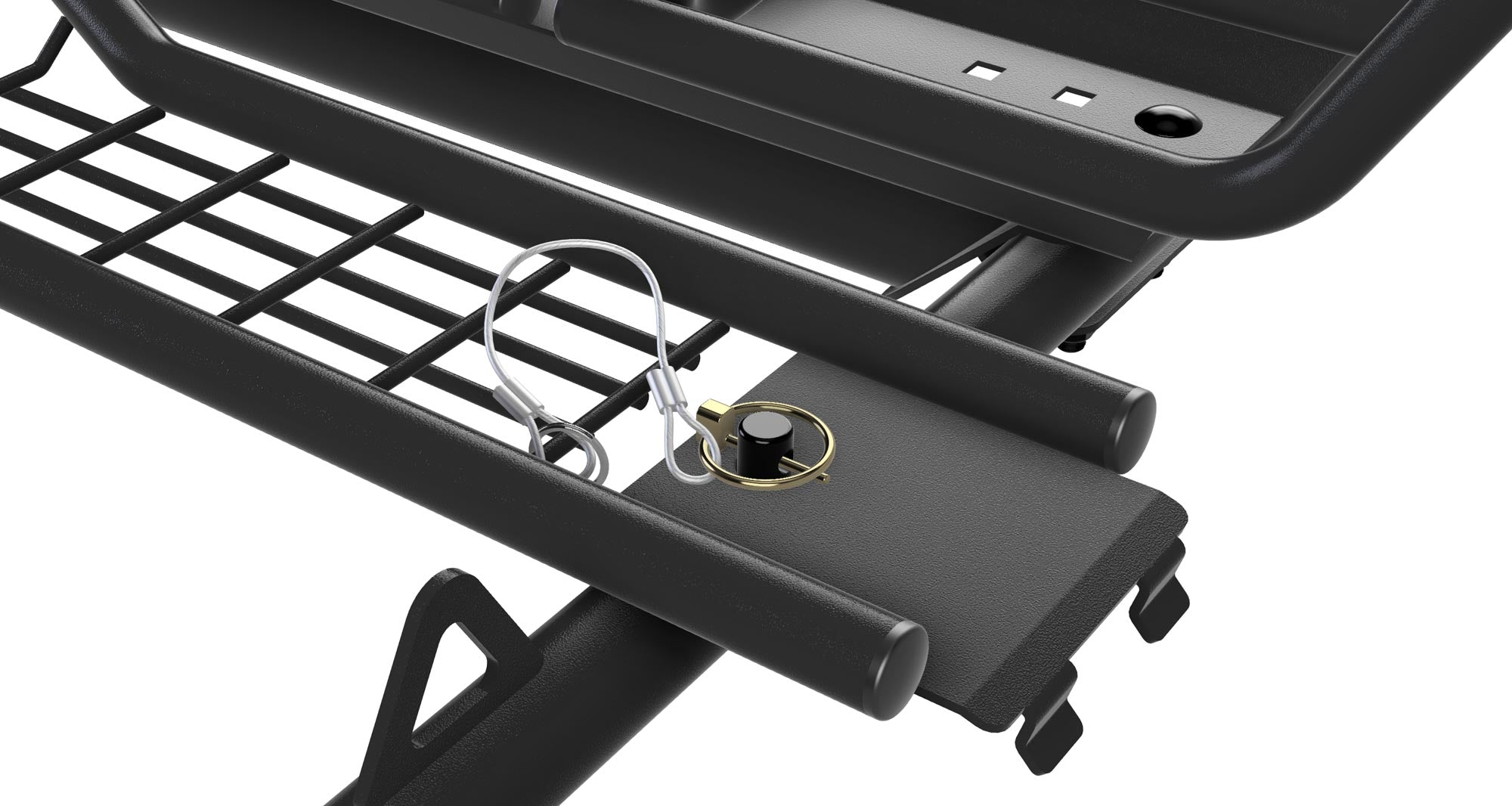

(E.) Secure Linchpin and Lanyard
Tether the lanyard to the loading ramp with the supplied key ring, insert the linchpin through the receiver post and then fold down the snap ring.

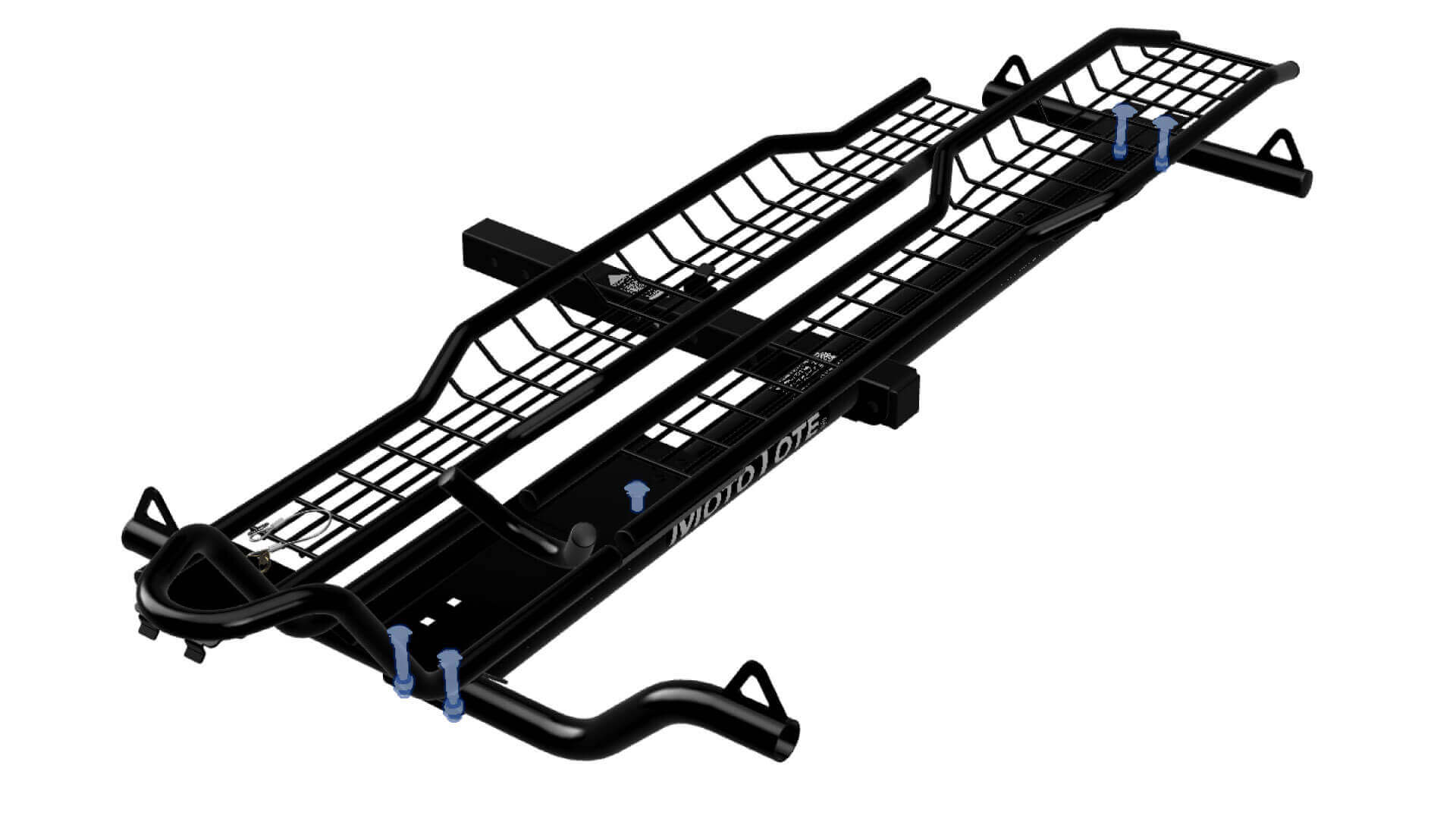

(F.) Tighten All Bolts
Now, tighten the nuts that you previously hand-tightened onto the two bolts under the front wheel stop.Tighten all nuts and bolts snugly to minimize rattling - Do not over-tighten.
