Step 2

Sport Components

Viewing instructions for Sport

(A.) Select Loading Side

The motorcycle can load and unload from either side of the vehicle, depending on which side you mount the front of the wheel stop to. In this step, you only need to decide which side you prefer.We recommend mounting the wheel stop to the driver's side as it enables the loading and unloading procedure to be completed safely off the vehicle's passenger side. This is optimal when parked on the side of a road, but it is entirely up to you and your preference.

(B.) Mount Wheel Stop

Place the front tie-down arm in the slot of the platform, making sure the curved section is facing outward.Lay down the wheel stop onto the platform and align with the holes then insert two bolts to the desired placement (there are three positions depending on your motorcycle length).Put on the nuts and hand tighten only for now (this is to ensure alignment of the loading ramp in Step 4).

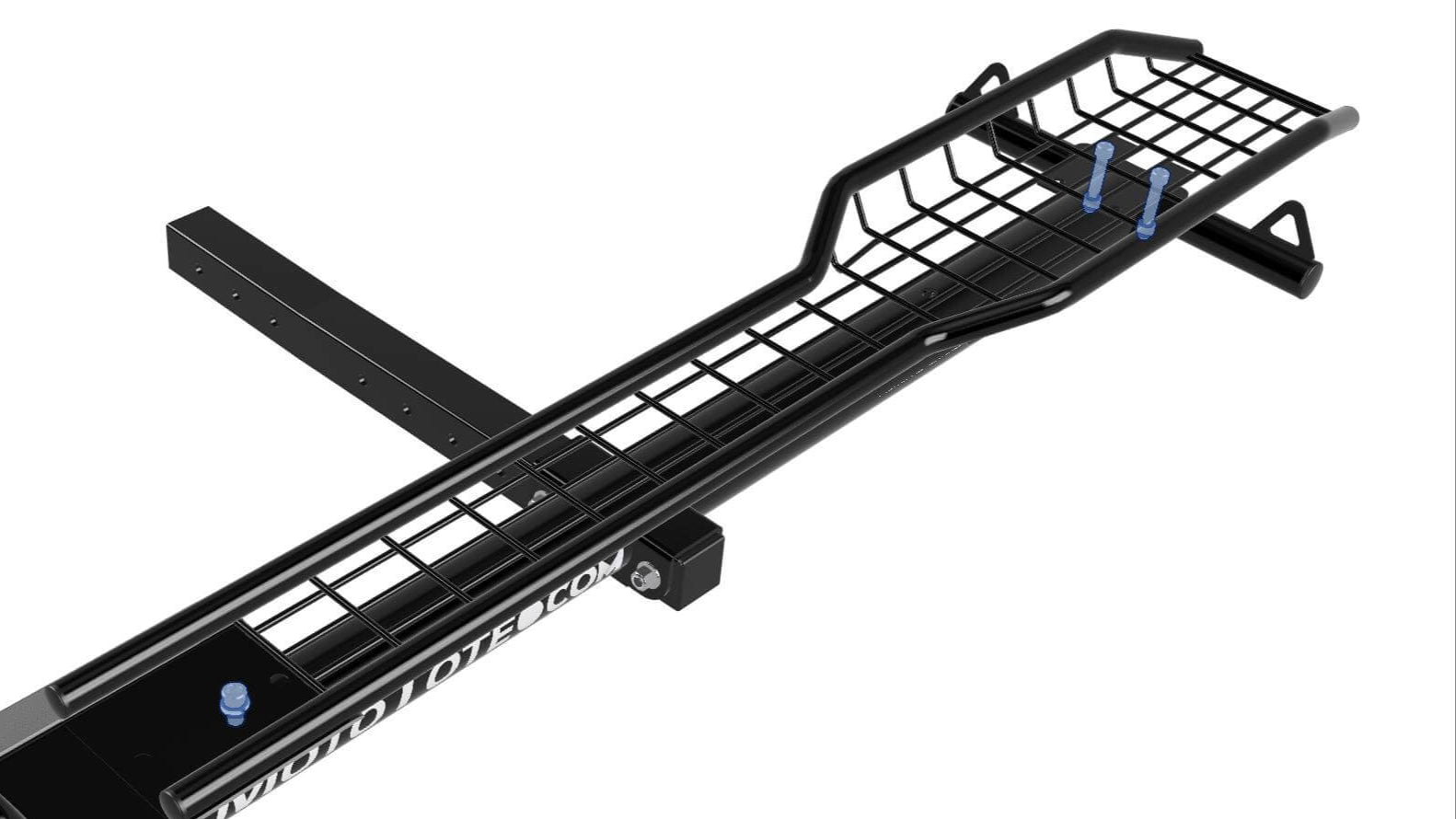

(C.) Mount Tire Track

The tire track sits on top of the wheel stop. There are two positions based on your motorcycle’s length. Align the tire track with desired holes.Insert the rear tie-down arm into the back slot in the MTX platform. Using two medium bolts and two nuts, tighten snugly to minimize rattling - Do not overtighten.Then put the short bolt with the lock washer through the tire track and wheel stop into the threaded hole on the platform tube.

For a PDF/printable manual for all MTX carriers, click here.
