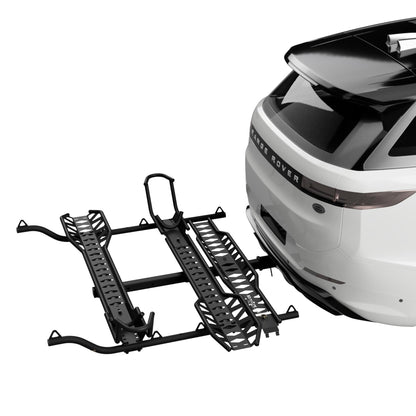

Technology & Features

MTX Dual Platform

(2) MTX Platforms

Two heavy-duty steel main supports connect to 2" receivers, haul up to 600 lbs. (272 kgs.) (300 lbs. per track spot) support track/chock adjustability, and the attachment of innovative components.

MotoTote Max+ Dual Motorcycle Carrier - StableStop Chock

(2) StableStop Chocks Extra Wide

Two adjustable tire mounts secure front tires up to 5.5" (139 mm), add lateral support, and hold the motorcycle upright while securing tie-downs.

MotoTote Max+ Dual Motorcycle Hauler - MaxHold Tracks

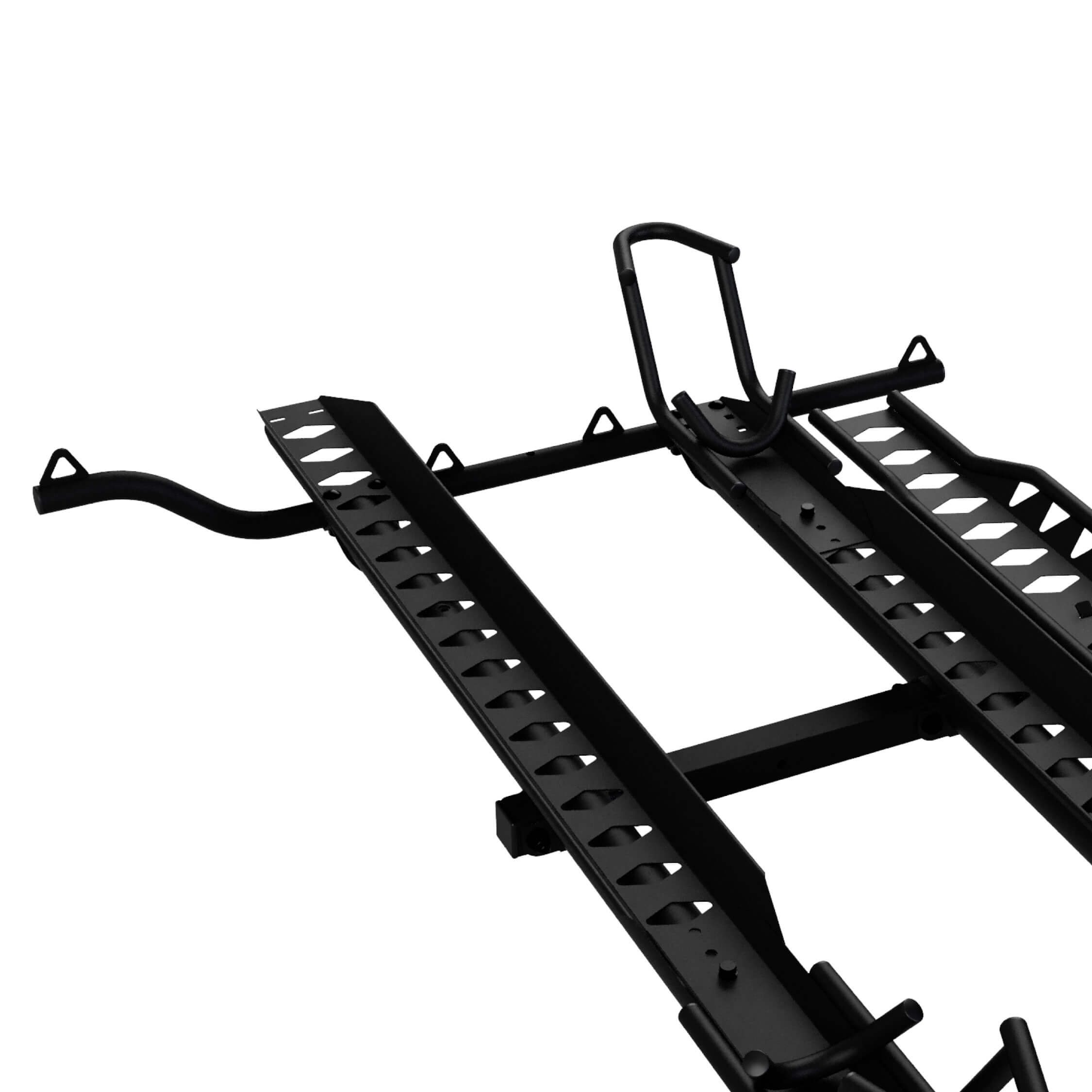

(2) MaxHold HD Tracks

Two adjustable laser cut tracks with improved geometry and reinforcements offer unrivaled wedging and grip to secure a range of oversized rear tire sizes up to 9" (229 mm) and adjust up to a 62" (157 cm) wheelbase.

MotoTote Max+  Dual Motorcycle Hauler - BroadPull Arms

(2) BroadPull XL Arms

Two extended length dual tie-down arms expand strap angles, add strength and maximize leverage.

MotoTote Max+ Motorcycle Hauler - QuickLoad Ramp

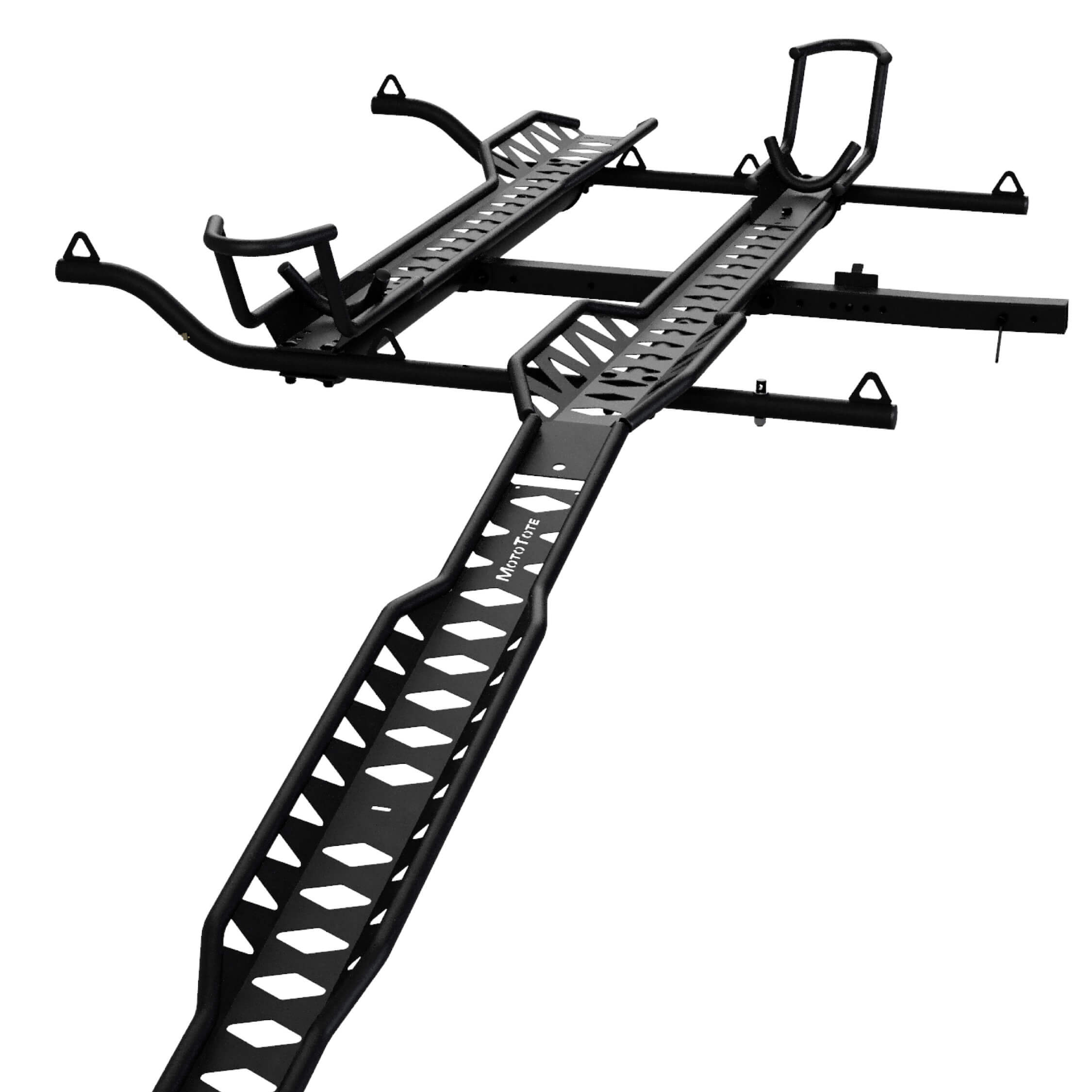

QuickLoad Ramp

A robust, elongated laser-cut ramp reduces loading angle, eliminates bottoming out and stores from the same side the ramp loads for a quicker setup.

MotoTote ZeroWobble+ Hitch Mount

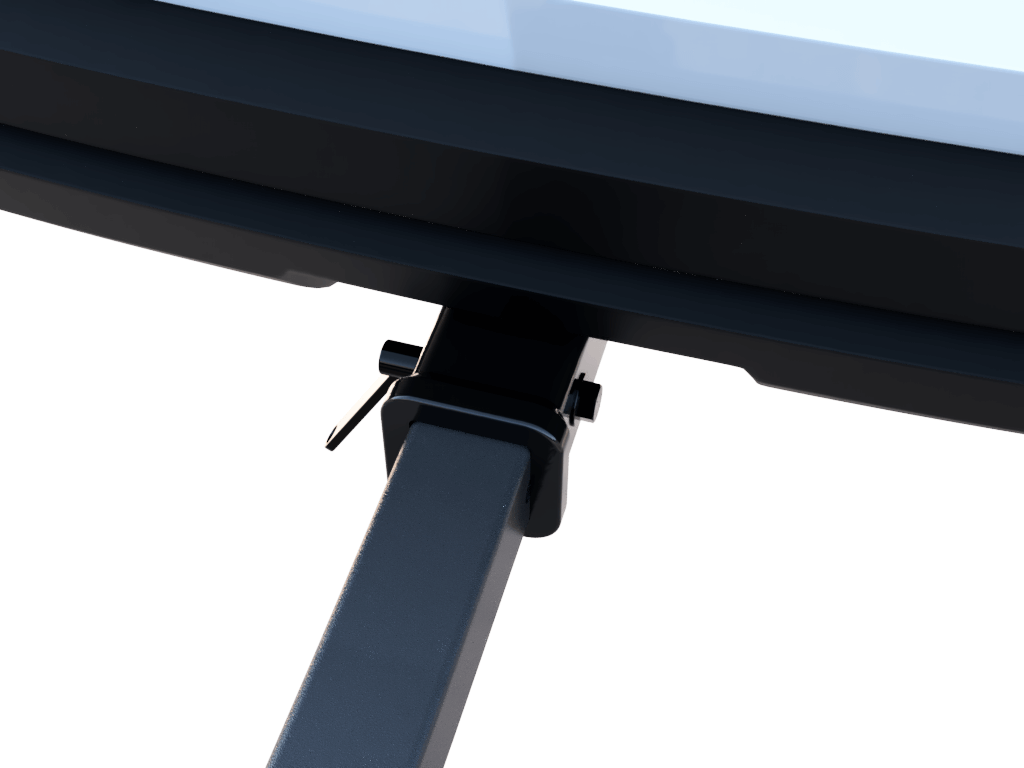

ZeroWobble+ Hitch Mount

Upgraded mount eliminates rack movement laterally in transport and requires fewer tools for installation.

Product Details

Dimensions

Wheelbase: Up to 65” (165 cm)

Front Wheel Chock Width: 5.5" (139 mm)

Tire Track Width:  9" (229 mm)

First Track Distance from Vehicle: 17.5" (97 cm)

Second Track Distance from Vehicle: 38" (45 cm)

Total Length: 77.5"- 80.5" (197 cm - 204.5 cm)

Loading Ramp Length: 56” L (142 cm.)

Front Tie Down Width: 29” (73.5 cm)

Rear Tie Down Width:: 29” (73.5 cm)

Loading Ramp Slope: v17 ° (On Average)

Weights

Weight Capacity: 600 lbs. (272 kgs.)

Outer Track Maximum Capacity : 250 lbs. (113 kgs.)

Carrier Weight: 106 lbs. (48 kgs.)

Materials

Material: Powder Coated Steel

Finish: Textured Black Powder Coating

Hardware: Black Zinc Coated

Assembly

Straightforward by design. Assembly usually takes 45–90 minutes, depending on proficiency, and requires only a few basic tools. Click here for step-by-step instructions.
