Technology & Features

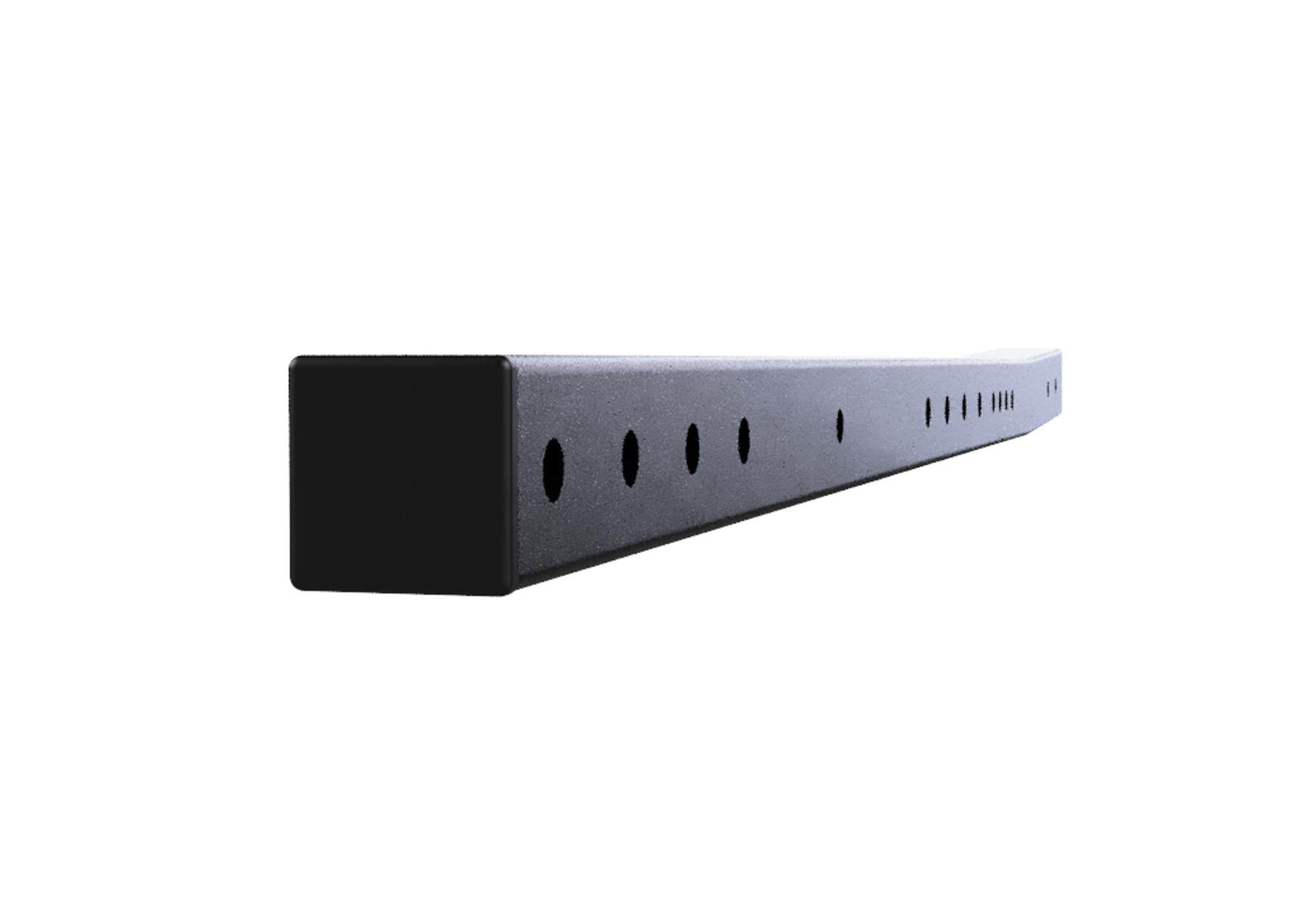

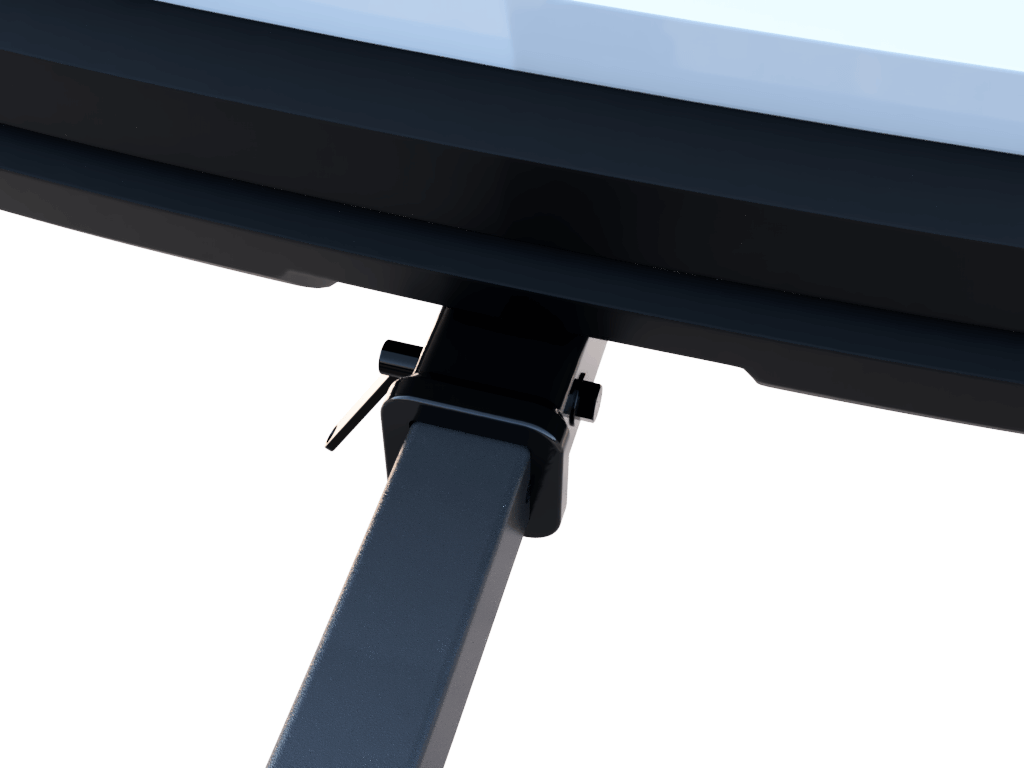

HitchLift Receiver Tube XL

Innovative extended 2" receiver tube counteracts common vehicle hitch droop with a slight upward bend, ensuring that the racks are angled correctly from the back of the vehicle. Provides additional ground clearance, attachment of ramp and distance from vehicle adjustability.

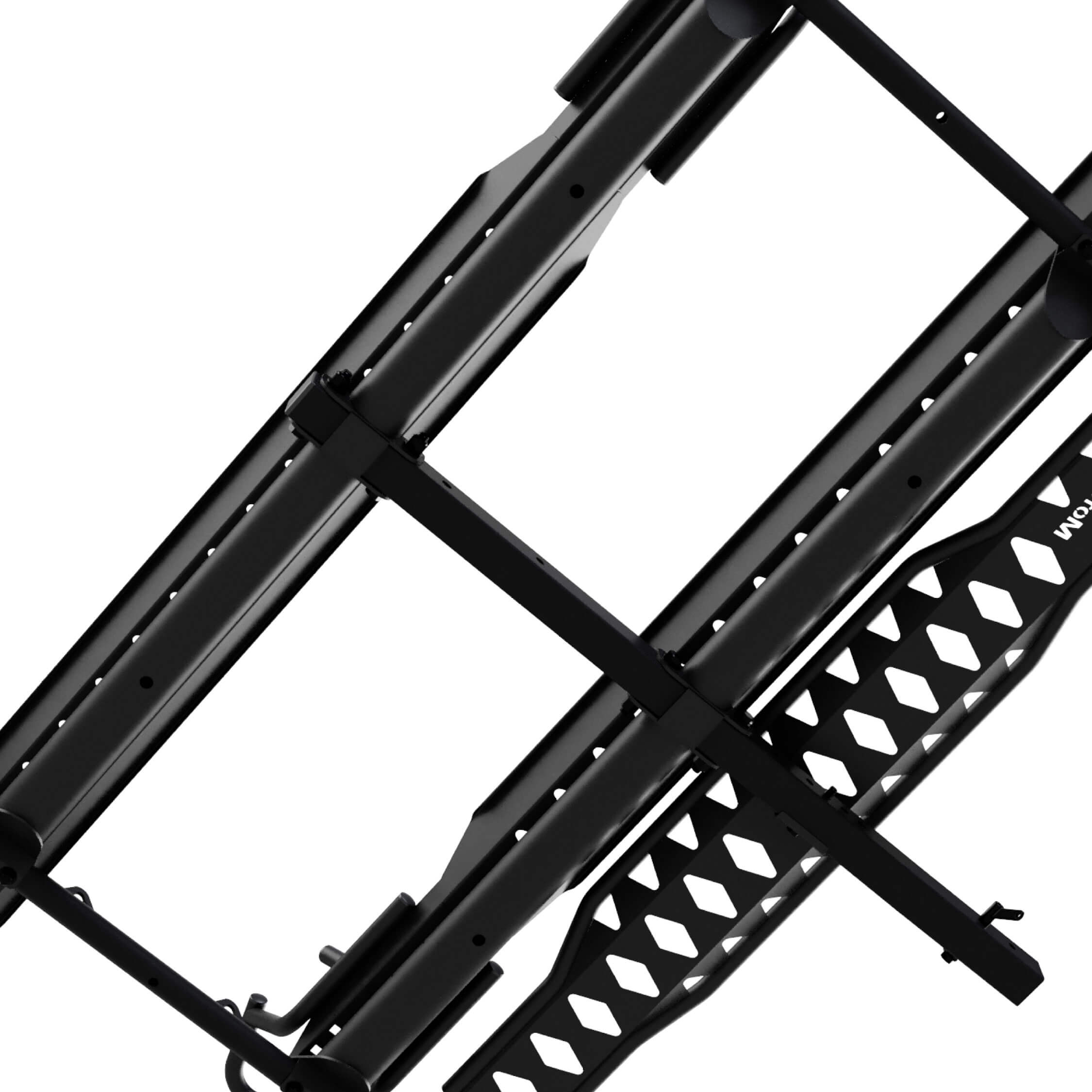

MTX Dual Platform

(2) MTX Platforms

Two heavy-duty steel main supports connect to 2" receivers, haul up to 600 lbs. (272 kgs.) (300 lbs. per track spot) support track/chock adjustability, and the attachment of innovative components.

MotoTote Max Dual Motorcycle Carrier - StableStop Chock

(2) StableStop Chocks

Two adjustable tire mounts secure front tires up to 4.75" (120 mm), add lateral support, and hold the motorcycles upright while securing tie-downs.

MotoTote Max Dual Motorcycle Hauler - MaxHold Tracks

(2) MaxHold Tracks

Two adjustable laser cut tracks with improved geometry offer unrivaled wedging and grip to secure a range of rear tire sizes up to 6" (152 mm) and adjust to a 62" (157 cm) wheelbase.

MotoTote Max Dual Motorcycle Hauler - BroadPull Arms

(2) BroadPull XL Arms

Two extended length dual tie-down arms expand strap angles, add strength and maximize leverage.

MotoTote Max Dual Motorcycle Hauler - QuickLoad Ramp

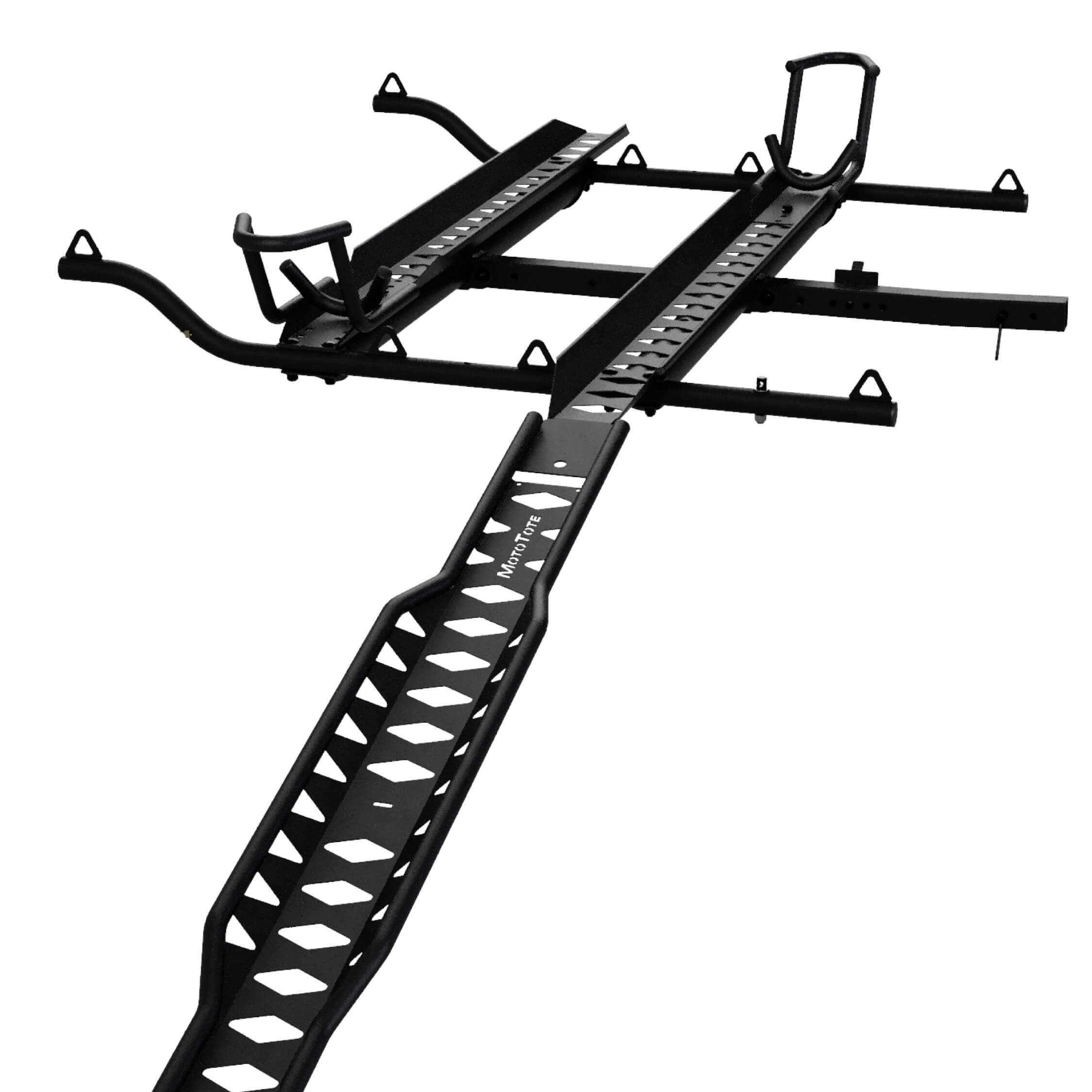

EasyLoad Ramp

A longer webbed steel ramp reduces angle, maximizes traction, and eliminates bottoming out while loading. Ramp hooks directly into tire track and will not disengage during loading.

MotoTote ZeroWobble+ Hitch Mount

ZeroWobble+ Hitch Mount

Upgraded mount eliminates rack movement laterally in transport and requires fewer tools for installation.

Product Details

Dimensions

Wheelbase: Up to 65” (165 cm)

Front Wheel Chock Width: 4.75” (120 mm.)

Tire Track Width:  6" (152 mm)

First Track Distance from Vehicle: 17.5" (97 cm)

Second Track Distance from Vehicle: 38" (45 cm)

Total Length: 72.5" - 78.5" (184 cm - 199 cm)

Loading Ramp Length: 56” L (142 cm.)

Front Tie Down Width: 29” (73.5 cm)

Rear Tie Down Width:29” (73.5 cm)

Loading Ramp Slope: v17 ° (On Average)

Weights

Weight Capacity: 600 lbs. (272 kgs.)

Outer Track Maximum Capacity : 250 lbs. (113 kgs.)

Carrier Weight: 101 lbs. (46 kgs.)

Materials

Material: Powder Coated Steel

Finish: Textured Black Powder Coating

Hardware: Black Zinc Coated

Assembly

Straightforward by design. Assembly usually takes 45–90 minutes, depending on proficiency, and requires only a few basic tools. Click here for step-by-step instructions.
