LED Light Kit Assembly

Viewing instructions for LED Light Kit

(A.) Separate from Bezel

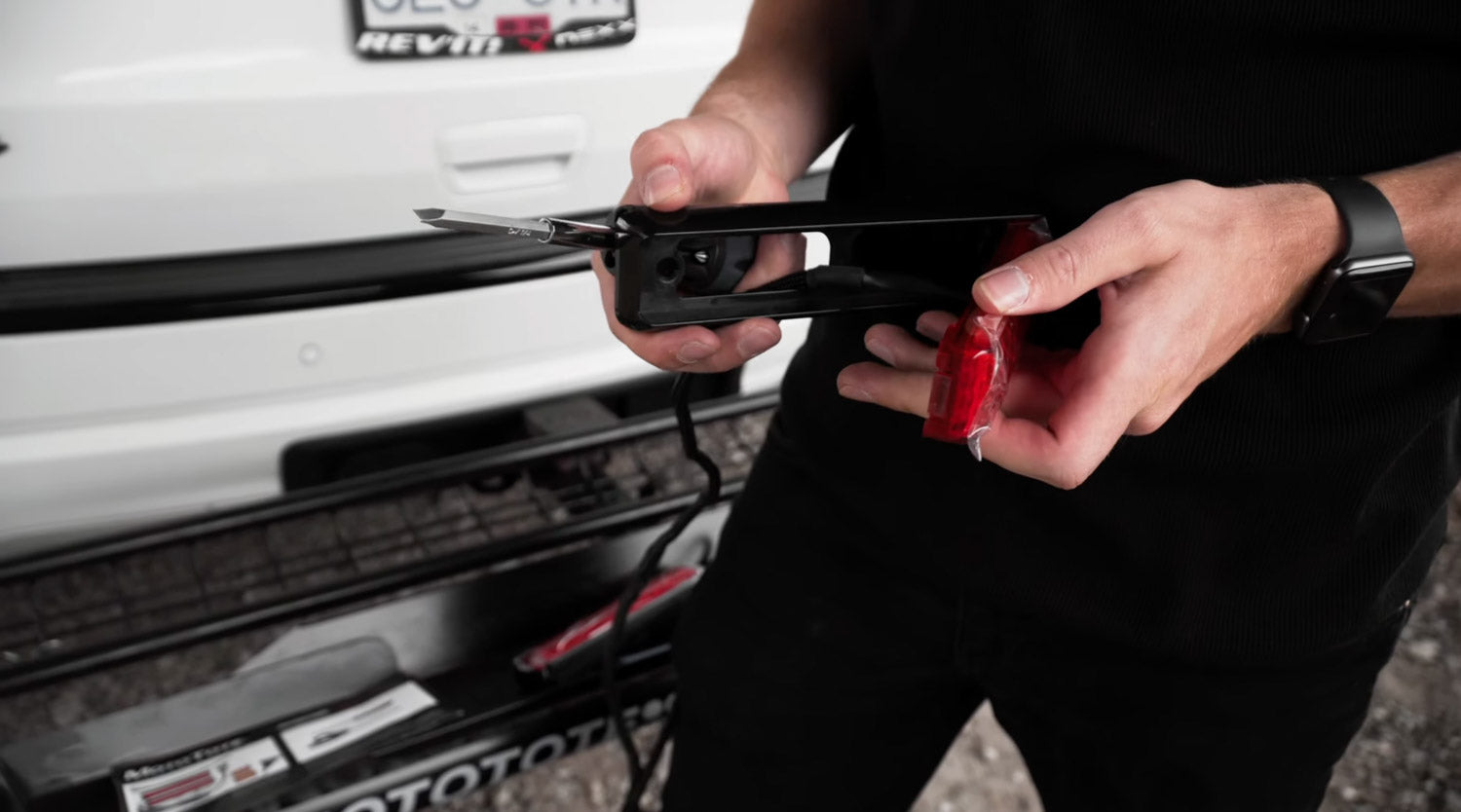

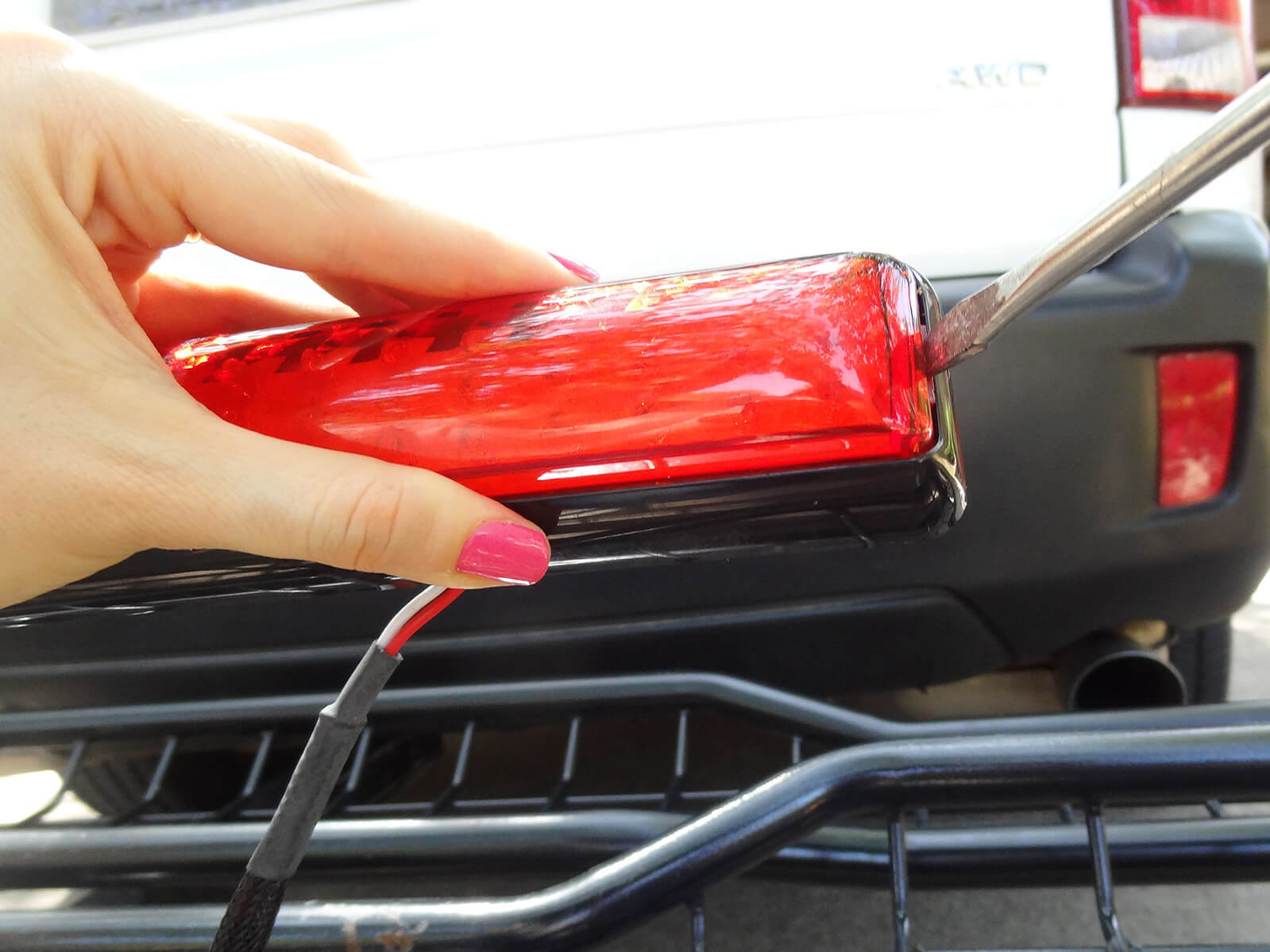

Separate light from bezel (base) with a flat head screwdriver as shown leaving the cable running through bezel.

(B.) Attach Bezel

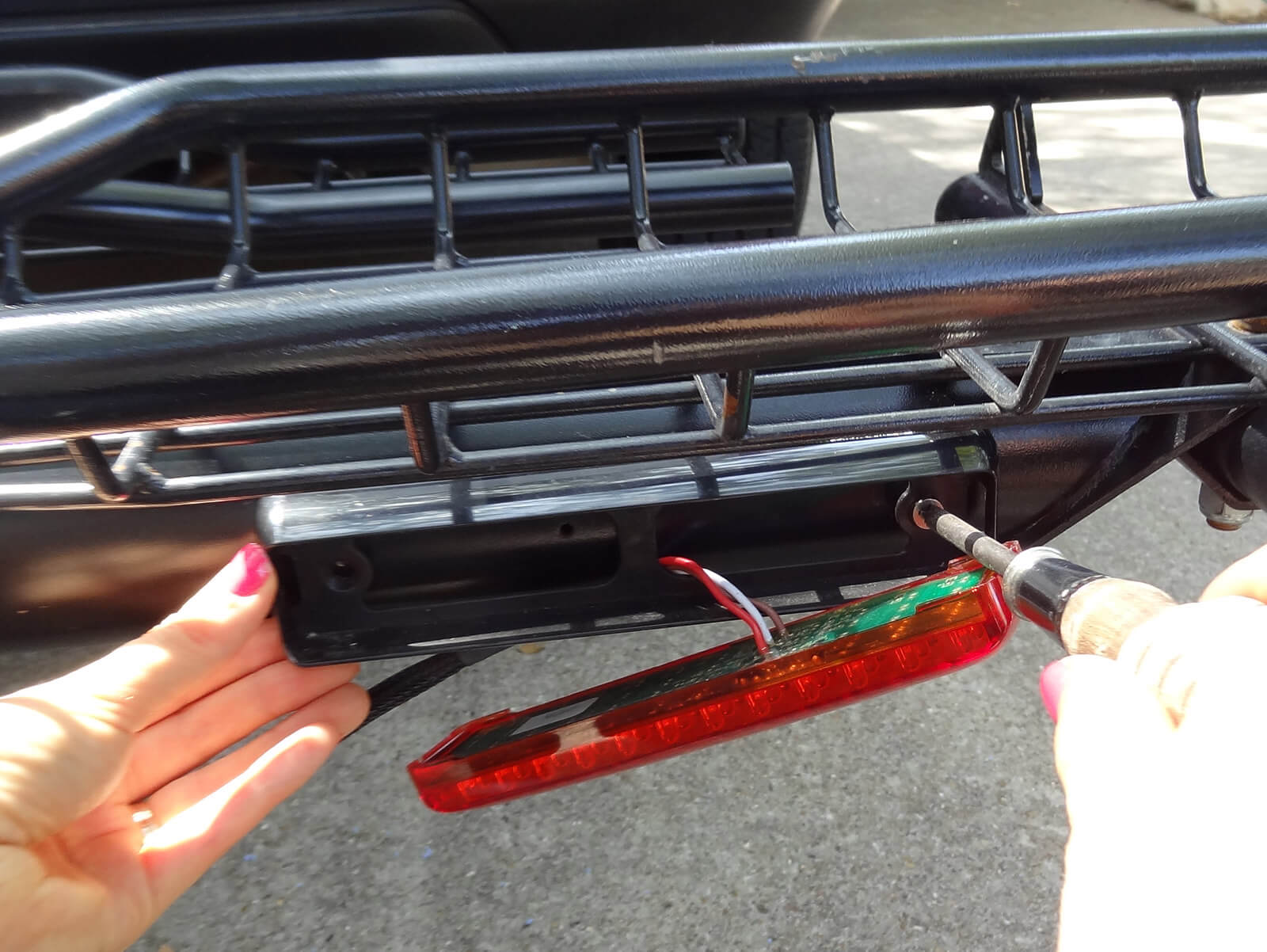

Identify left/right light by labels on back. Attach bezel to MTX Platform tube with screws provided and pre-punched holes.

(C.) Press into Bezel

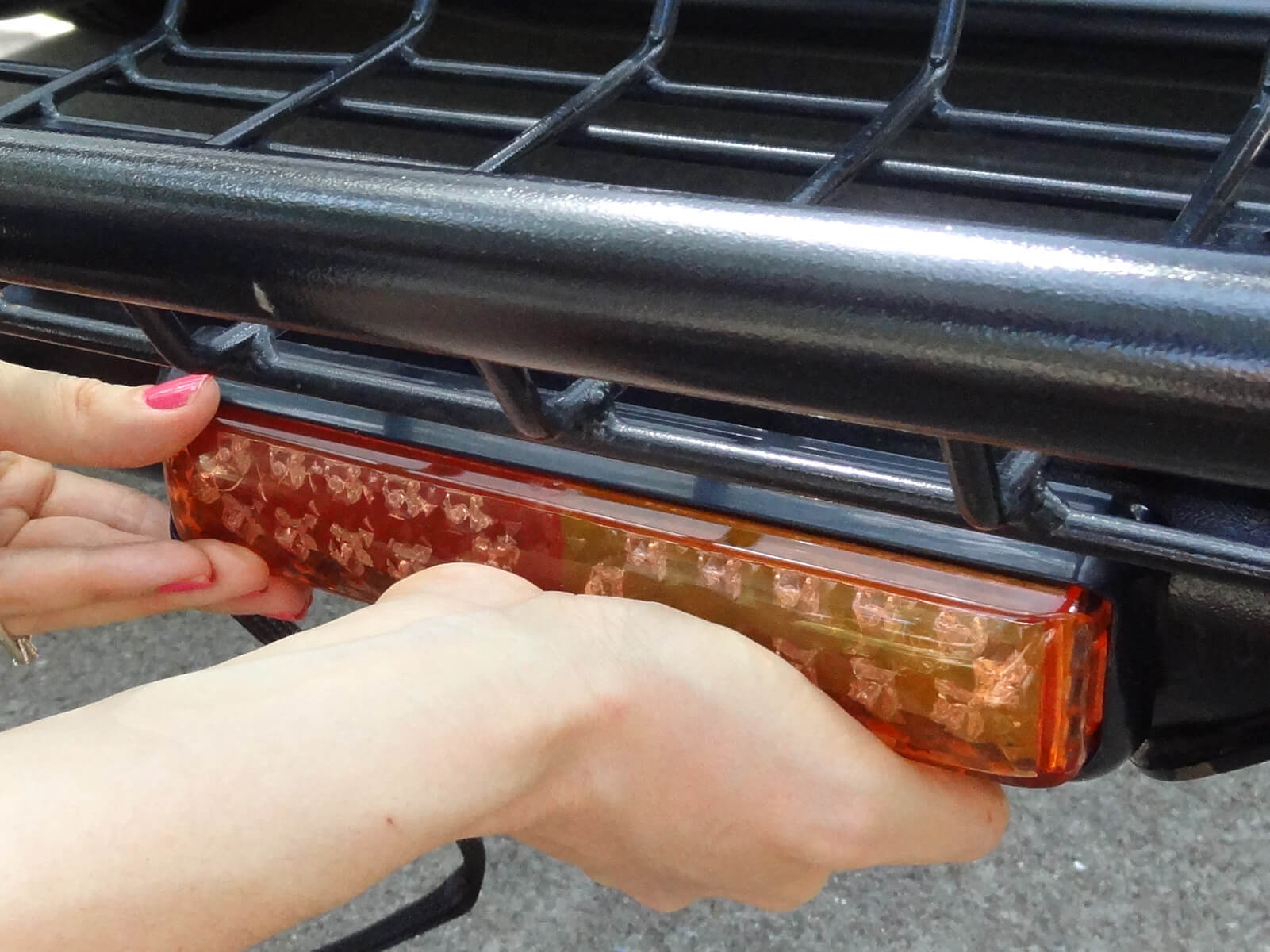

Press light into bezel with palm of hand as shown until it “snaps” into place.

(D.) Secure Cables & Connect

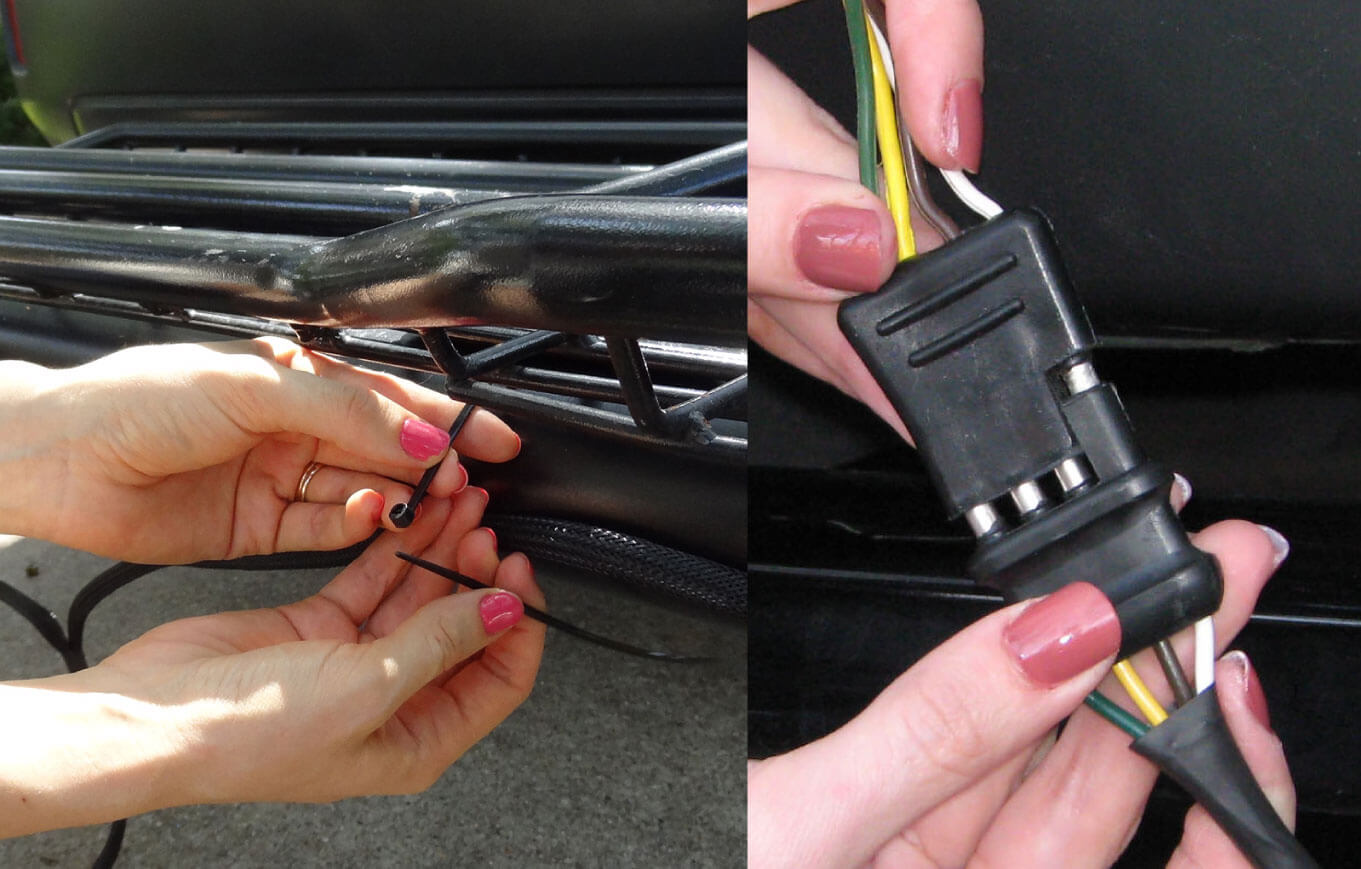

Run the cables along the underside of the MotoTote toward center then forward toward vehicle. Secure with the nylon ties then plug into vehicle connector.

(E.) Check Operation

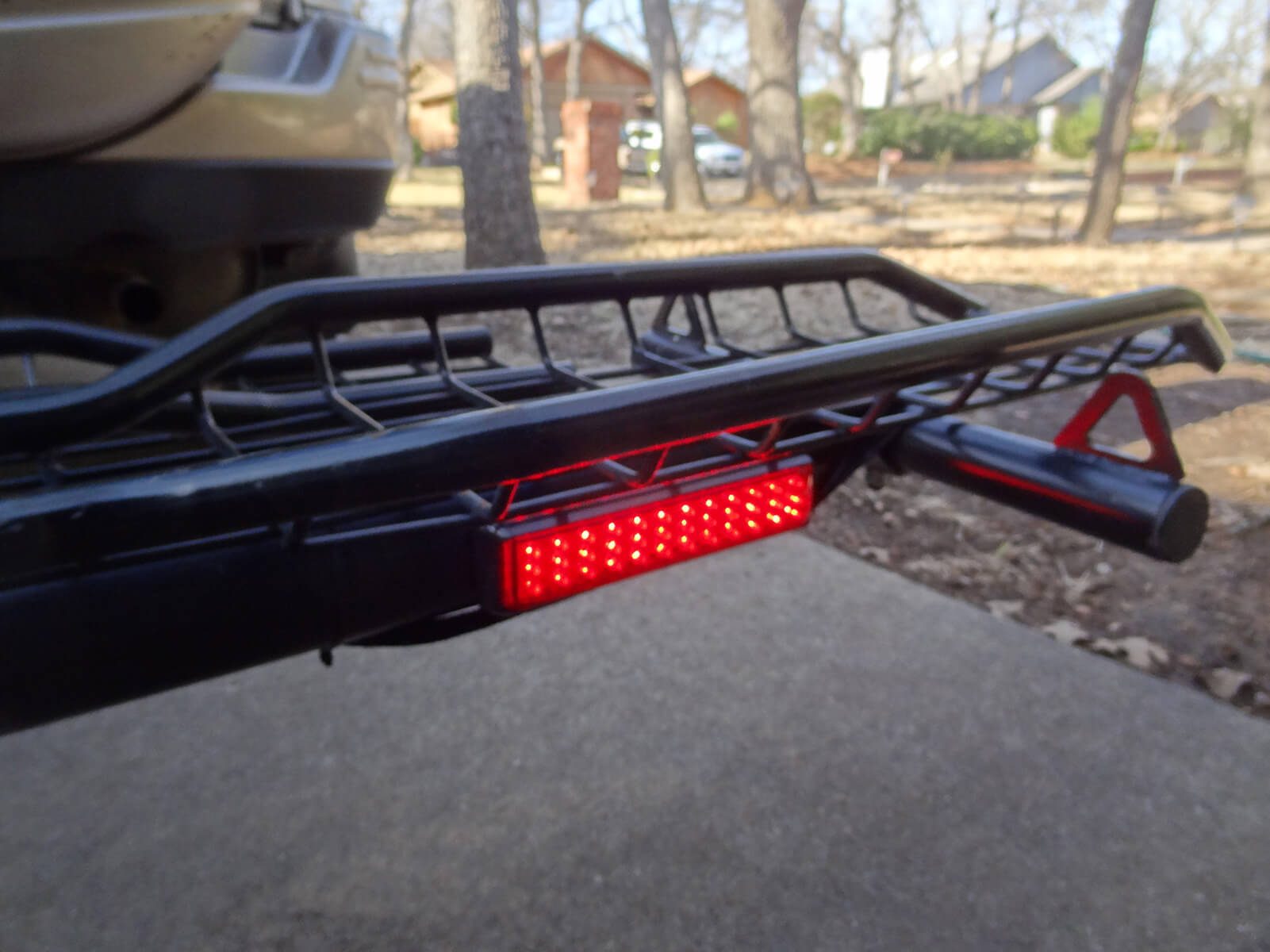

Check for proper operation of brake, turn signal, and tail lights. Apply brakes and use turn signals with the headlights on. Repeat with the headlights off (tail lights will be off but brake and turn signals should work).
